BRAND | Fairchild |
Product | 4516AI |

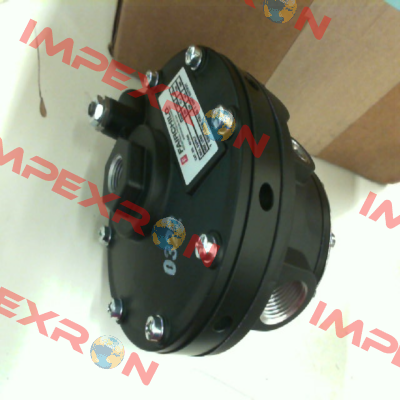

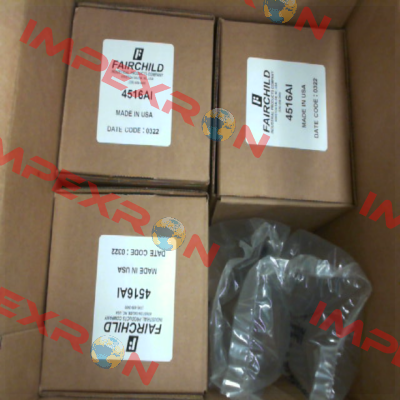

Description | Pneumatic Volume Booster |
Internal code | IMP4521806 |
Custom code | 9032899000 |
Technical specification | Accuracy: 0.50 psi Sensitivity: 1 in WC Supply Pressure: 250 psi Pressure Range: 0-150 psi Flow Capacity: 150 SCFM Pipe Size: 3/4 FPT Body Material: Aluminum Elastomer: Nitrile on Dacron Ambient Temperature: -40 F (-40 C) to 200 F (93.3 C) Base Model: 4516A Exhaust Capacity: 40 SCFM [65.2m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint Exhaust Type: Straight (standard) FlowCv: 3 Mounting: Wall (order 20555-1 bracket below) Operator: Pneumatic pilot signal Options: [I] By-pass valve Ratio: 1:1RatioAccuracy: 3.0 pct of 100 psi output span Flow Capacity: 150 SCFM (255 M³/HR)Max. Output Pressure: 150 PSIGMax. Supply Pressure: 250 PSIG Signal to Output Pressure Ratio: 1:1 |
Please Contact Us to Order to offer competitive prices and delivery time for Fairchild - 4516AI Pneumatic Volume Booster number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Australia Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
