CTD9V10005AXXX - Carlo Gavazzi Australia Sales

BRAND	Carlo Gavazzi
Product	CTD9V10005AXXX

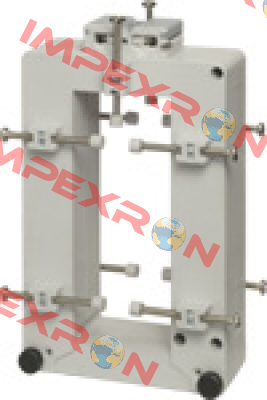

Description	AC Solid-core Current Transformer
Internal code	IMP242011
Weight	1
Technical specification	AC Solid-core Current Transformer Type CTD-9V / CTD-9H (max 35x125mm) • Bus-bar type solid-core current transformer • Class 0.5 accuracy • Currents from 400 A to 3200 A • Up to 10 Bus-bar isolated fixing screws • Double screw terminals (up to 8-wire connections) • Sealable terminal block covers Product Description Ordering Key CTD-9V2000 5AXXX Solid-core current transformer with bus-bar mountng facility. Rated primary currents from 400 A to 3200 A. Model Primary current Secondary current Option Type Selection Model CTD-9V:vertical mounting CTD-9H:horizontal mounting Primary current From 400A to 3200A (Refer to the Range Table) Secondary current 1A (on request) 5A Option XXX:none XTX: tropicalization InputSpecifications Operating frequency48 to 62 Hz Max. system voltage0.72 kV Rated insulation level3 kV/1 min. @ 50 Hz Insulation class E (max 75°C) Short-time current rating Ith Typical 100 In /1 s Idyn 2.5 Ith The short-timethermal current Ith is anyway limited by the cable/bus-bar size Extended current rating refer to the Range Table Security factor (FS)≤ 5 (Class: 0.5, 1 and 3) General Specifications Standards According to EN60044-1 HousingABS, self-extinguishing: UL 94 V-0 MountingBus-bar mounting Standard accessoriesTwo terminal block screws. Ten bus-bar fixing screws. Ten plastic caps for bus-bar fixing screws. Two sealable terminal block covers. Special features1 A secondary current, Tropicalization Working temperature-25°C to: refer to the Range Table (-13°F to: refer to the Range Table) (R.H. < 90% non condensing @ 40°C) Storage temperature-30°C to +70°C (-22°F to 158°F) (R.H. < 90% non condensing @ 40°C) Approvals CE. cURus and CSA (400A to 2000A) Connection Screw type Cable cross section areaFrom 1.5 to 6 mm2 Min/Max screws tightening torque relevant to terminal block screws: From 1 to 2 Nm Max screws tightening torque relevant to the cable/bus-bar fixing screws: 0,3 Nm Protection degree IP00 (without sealable terminal covers) IP20 (with sealable terminal block covers + wire terminals) Bus-bar size Max. 35x125 mm WeightFrom 450 to 700 g

Please Contact Us to Order to offer competitive prices and delivery time for Carlo Gavazzi - CTD9V10005AXXX AC Solid-core Current Transformer number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Australia Industrial products Market.
